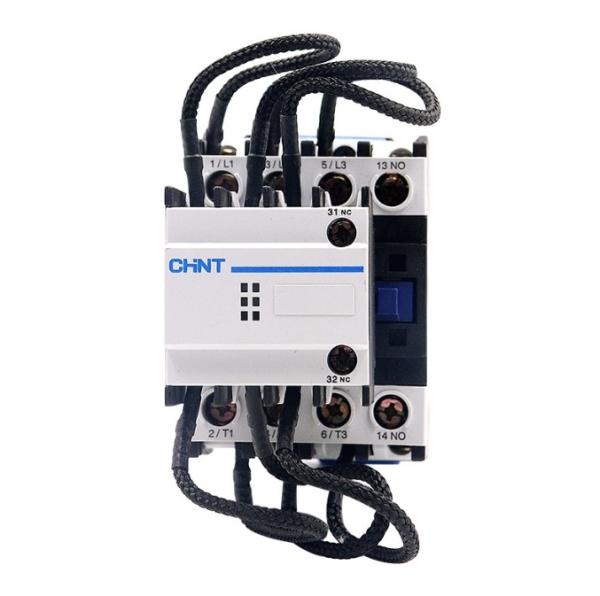

CJ19-170 AC Contactor 130A Three Phase Electrical Contactor IP10
Magnetic Contactor
Product Description:
The CJ19 series switching capacitor contactor is mainly used in AC
circuits at 50 Hz (or 60 Hz), with a rated operating voltage up to
690 V. It is used for low-voltage reactive power compensation
equipment to put in or remove low-voltage shunt capacitors. The
contactor is equipped with a surge current suppression device,
which effectively reduces the inrush current impact on the
capacitors during closing and suppresses overvoltage during
opening. Meet the standards: GB / T14048.4, IEC / EN 60947-4-1.
Product Feature:
The CJ19 series switching capacitor contactor has a direct-acting,
double-break structure. The contact system is arranged in two
layers, with the upper layer consisting of a surge current
suppression device made up of three pairs of current-limiting
contacts and current-limiting resistors. When the contactor closes,
it connects first, after a few milliseconds, the working contacts
connect. The permanent magnets in the current-limiting contacts
release under spring force, disconnecting the current-limiting
resistors and allowing the capacitors to operate normally.
•CJ19-25 to CJ19-43 contactors have two pairs of auxiliary
contacts.
•CJ19-63 to CJ19-95 contactors have three pairs of auxiliary
contacts.
•CJ19-115 to CJ19-170 contactors have one pair of auxiliary
contacts built-in.
The wiring terminals are covered with insulating covers for safety
and reliability. The coil connection terminals are marked with
voltage data to prevent incorrect connections.
•CJ19-25 to CJ19-43 contactors can be installed with screws or
mounted on a 35 mm standard DIN rail using a slide-on bracket.
•CJ19-63 to CJ19-95 contactors can be installed on 35 mm or 75 mm
standard DIN rail.
•CJ19-115 to CJ19-170 contactors can be installed with screws or
mounted on two 35 mm standard DIN rails.
Product Specification:
| Parameter Name | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-95 | CJ19-115 | CJ19-150 | CJ19-170 |
| Limited Current le (AC-6b)(A) | 17 | 23 | 29 | 43 | 72.2 | 87 | 115 | 130 |
| Controllable Capacitor Capacity(kvar) | 220/230V | 6.7 | 10 | 15 | 20 | 35 | 40 | 46 | 52 |
| 380/400V | 12.5 | 20 | 25 | 33.3 | 50 | 60 | 80 | 90 |
| 660/690V | 18 | 26 | 36 | 48 | 92 | 100 | 120 | 130 |
| Rated Insulation VoltageUi(V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 |
| Surge Current Suppression Capability | 20le |
| Operating Conditions | Pick-up:(85%~110%)Us；Drop-out:(20%~75%)Us |
| Coil Power (VA) Pickup/Hold | 70/9.5 | 110/14 | 110/14 | 300/57 | 300/57 | 660/91.2 | 660/91.2 | 660/91.2 |
| Control Capacity of Auxiliary Contacts | AC-15:Je:0.95A 380V/400V DC-13:le:0.15A 220V/250V Ith:10A |
| Weight(kg) | 0.44 | 0.63 | 0.64 | 1.4 | 1.5 | 3.45 | 3.45 | 3.45 |
| Rated Impulse Withstand Voltage(Uimp) | 6kV |
| Protection Rating | IP10 |
Operating Conditions and Environmental Suitability:
●The ambient air temperature is -5℃ ~ + 40℃, and the average value
does not exceed + 35℃ within 24 hours.
●Altitude: not more than 2000m.
●Atmospheric conditions: at the maximum temperature of + 40℃, the
relative humidity of air does not exceed 50%; a high relative
humidity can be allowed at lower temperatures, such as up to 90% at
+ 20℃. Special measures should be taken for the condensation
occasionally produced due to temperature changes.
●Pollution degree: 3.
●Installation category: Ⅲ Class.
●Installation conditions: The inclination of the mounting surface
and the vertical surface is not greater than ±5°.
