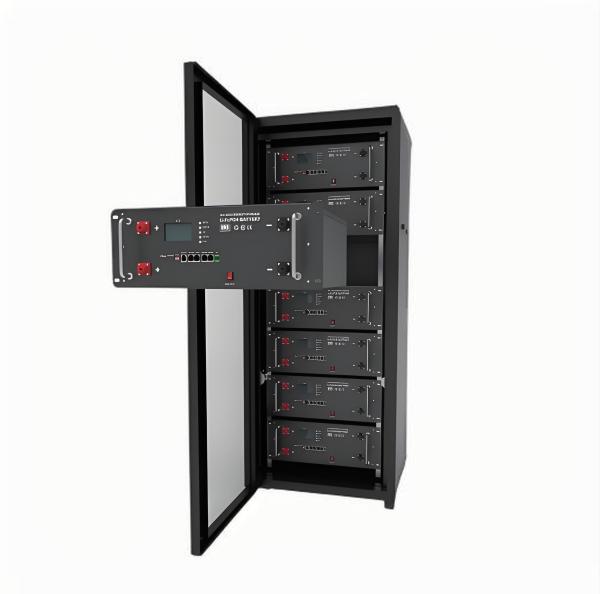

    Low Voltage Battery Series XPA-256100 IP20 Rack Mounted Or Wall Mounted

    Ask Lasest Price
    Model Number : XPA-256100
    Certification : CE、MSDS
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 1000 pcs per mouth
    Delivery Time : 5-8 weeks
    • Product Details
    • Company Profile

    Low Voltage Battery Series XPA-256100 IP20 Rack Mounted Or Wall Mounted

    Low - Voltage Battery Series XPA-256100 IP20 Rack - mounted or Wall - mounted



    Product parameter

    ModelXPA - 256100XPA - 512100XPA - 512200XPA - 512280
    Nominal Voltage25.6VDC51.2VDC
    Operating Voltage Range21.628.8VDC43.257.6VDC
    Nominal Capacity100Ah100Ah200Ah280Ah
    Rated Energy2.56kWh5.12kWh10.24kWh14.336kWh
    Communication ProtocolCAN / RS485 / RS232 / WiFi / (Bluetooth)
    Self - Discharge of Cell<5% / month
    Number of Parallel Connections Supported115 PCS
    DOD90%
    Cycle Life≥6000 @ 25°C, 80% DOD
    Maximum Charge - Discharge Current100A200A
    IP RatingIP20
    Installation MethodRack - mounted or Wall - mounted
    Operating Temperature055
    Storage Temperature-20~55℃
    Humidity≤80%
    Product Dimensions484×330×165mm484×425×176.5mm520×773×164.5mm484×750×240mm
    Packaging Dimensions545×430×285mm545×510×300mm900×620×385mm547×875×450mm
    Product Net Weight24kg41kg85kg106kg
