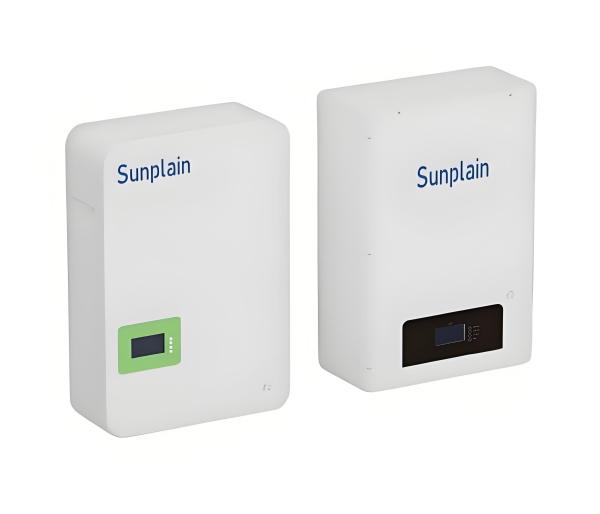

    Low - Voltage Battery Series XPB-512100 IP20 IP54 Built-in Intelligent Safety BMS

    Ask Lasest Price
    Model Number : XPB-512100
    Certification : CE、MSDS
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 1000 pcs per mouth
    Delivery Time : 5-8 weeks
    • Product Details
    • Company Profile

    Low - Voltage Battery Series XPB-512100 IP20 IP54 Built-in Intelligent Safety BMS

    Low - Voltage Battery Series XPB-512100 IP20 IP54 Built-in Intelligent Safety BMS



    Product parameter

    ModelXPB-512100XPB-512150XPB-512200XPB-512280
    Nominal Voltage51.2VDC
    Voltage Range43.257.6VDC
    Nominal Capacity100Ah150Ah200Ah280Ah
    Rated Energy5.12kWh7.68kWh10.24kWh14.336kWh
    Communication ProtocolCAN / RS485 / RS232 / WIFI / Bluetooth
    Self-Discharge of Cell5%/month
    Number of Parallel Connections Supported115 PCS
    Depth of Discharge (DOD)90%
    Cycle Life6000 @25℃,80% DOD
    Maximum Charge & Discharge Current100A200A
    IP RatingIP20(IP54)
    Installation MethodWall-mounted
    Operating Temperature055
    Storage Temperature-2055
    Humidity80%
    Product Dimensions410*592*160mm705*530*247mm530*1060*160mm530*800*267mm
    Package Dimensions495*680*280mm770*630*325mm630*1160*405mm630*900*510mm
    Net Weight of Product44kg84kg96kg125kg
